Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series - Black Pulley Kit - Fuel Injected

Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series - Black Pulley Kit - Fuel Injected

Description:

  • Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Cast Iron Crank
  • Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Priority Main Oiling
  • 4.000" Bore
  • 4-Bolt Main
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design

Rotating Assembly:

  • New BluePrint Cast Iron Crankshaft
  • 3.400" Stroke
  • Forged I-Beam 5.400" Connecting Rods
  • Forged Pistons
  • 28oz Externally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - HP9009
  • 60cc Chamber
  • 2.02" Intake / 1.60" Exhaust Valves
  • 190cc Intake / 65cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .543 Intake / .554 Exhaust Lift
  • 218 Intake / 226 Exhaust Duration
  • @.050-112 Degree Lobe Separation

Ignition Timing:

  • 34 Degrees Total at 3500 RPM

Also Includes:

  • Dual Plane, Satin Aluminum Intake Manifold
  • Holley Sniper 2 EFI System - BPP550-510-3XX
  • EFI Fuel Pump Kit - BPP5267
  • Pro Billet Distributor
  • Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*
  • 7 Quart Oil Pan
  • Thermostat and Thermostat Housing
  • Black Front Accessory Drive - BPP302FDACPS4BK
    • Driver Side Standard Rotation Water Pump
    • Type II Power Steering Pump
    • Remote Power Steering Pump Reservoir
    • 140amp 1-wire Alternator
    • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete TKX Transmission Package:

  • Mcleod Super Street Pro single disk clutch
  • Hydraulic throw out bearing
  • Aluminum Bell housing
  • Billet flywheel
  • Engine guard
  • Starter
    • First Gear Ratio: 2.87:1
    • Second Gear Ratio: 1.89:1
    • Third Gear Ratio: 1.28:1
    • Fourth Gear Ratio: 1.00:1
    • Fifth Gear Ratio: 0.81:1

Notes:

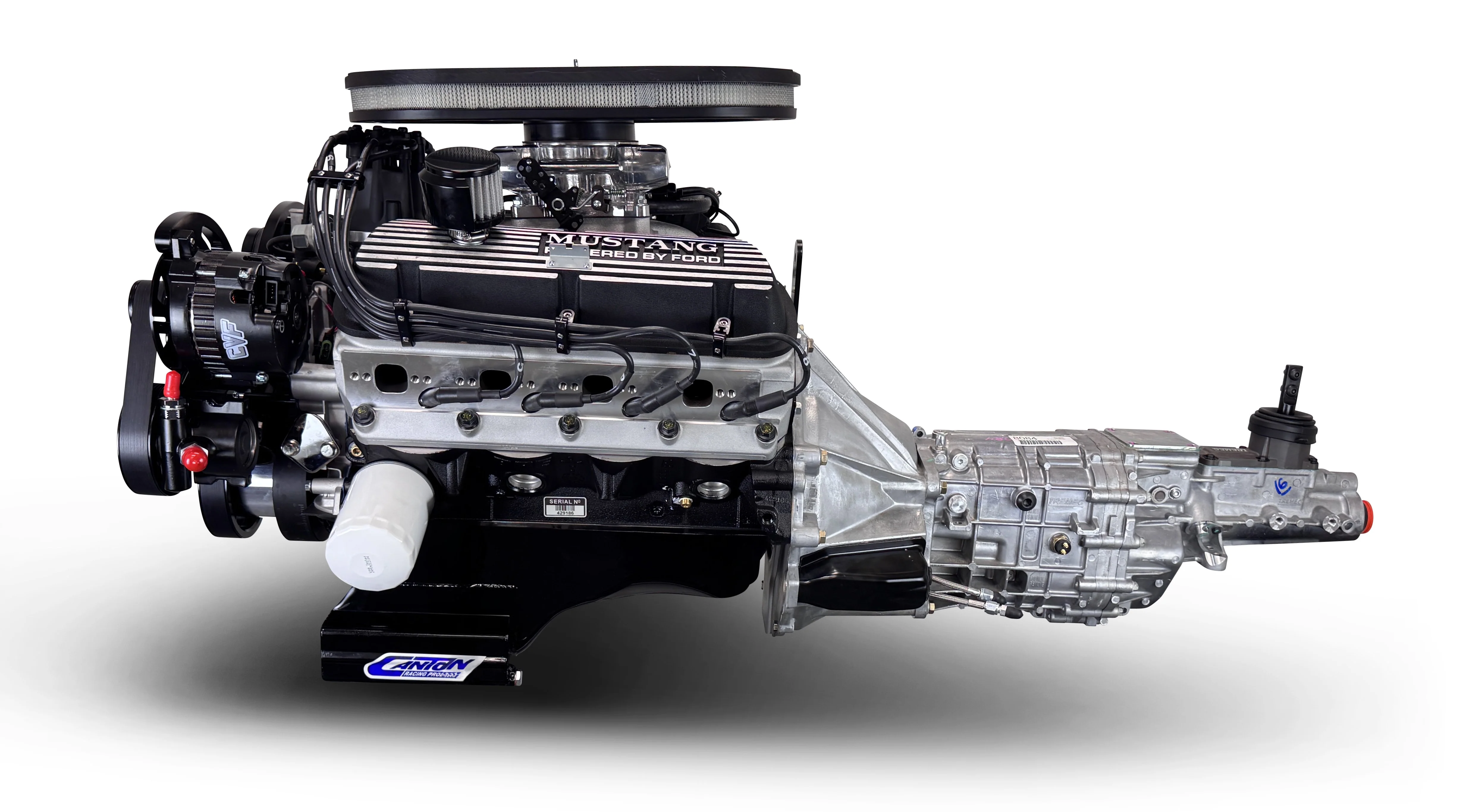

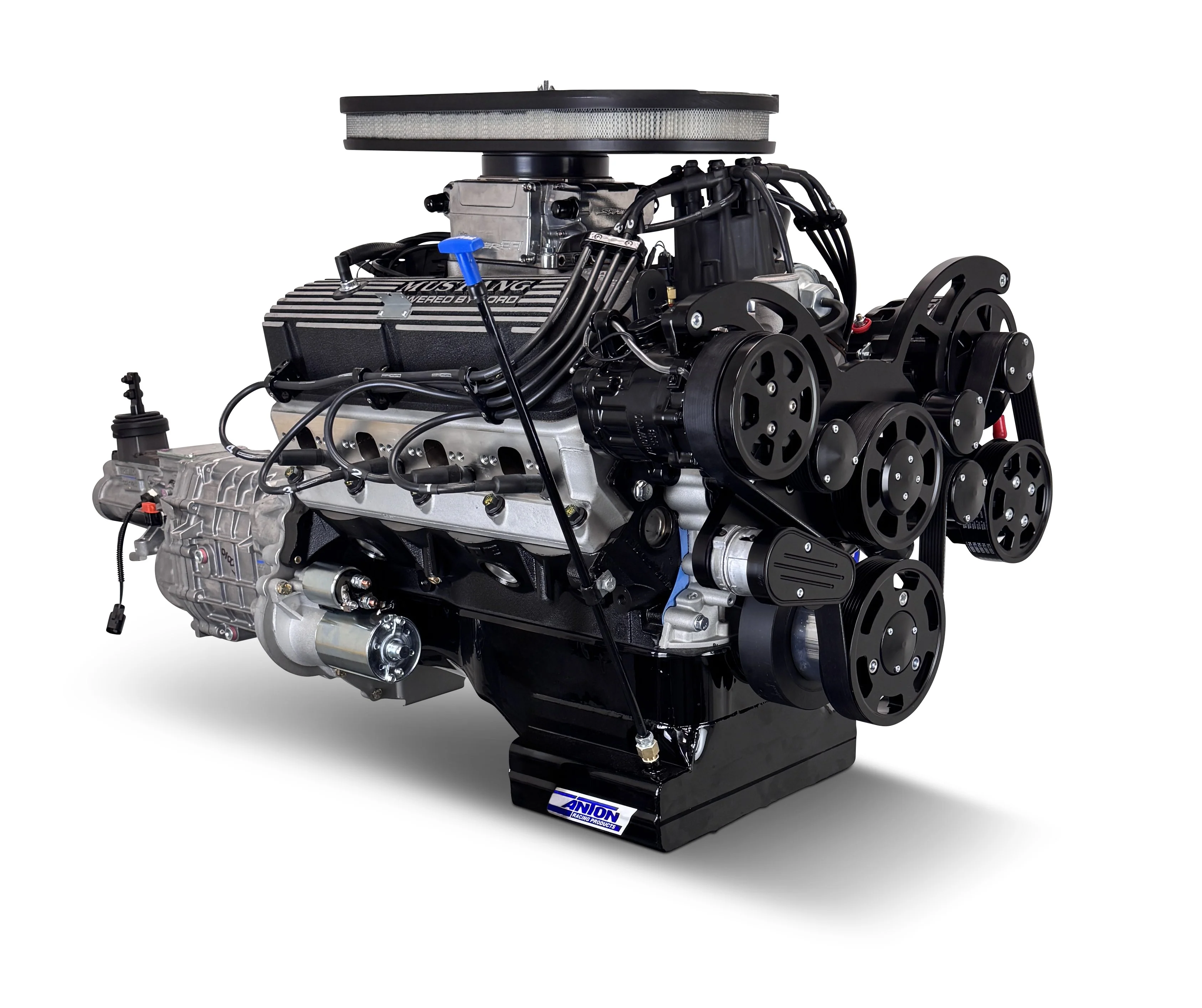

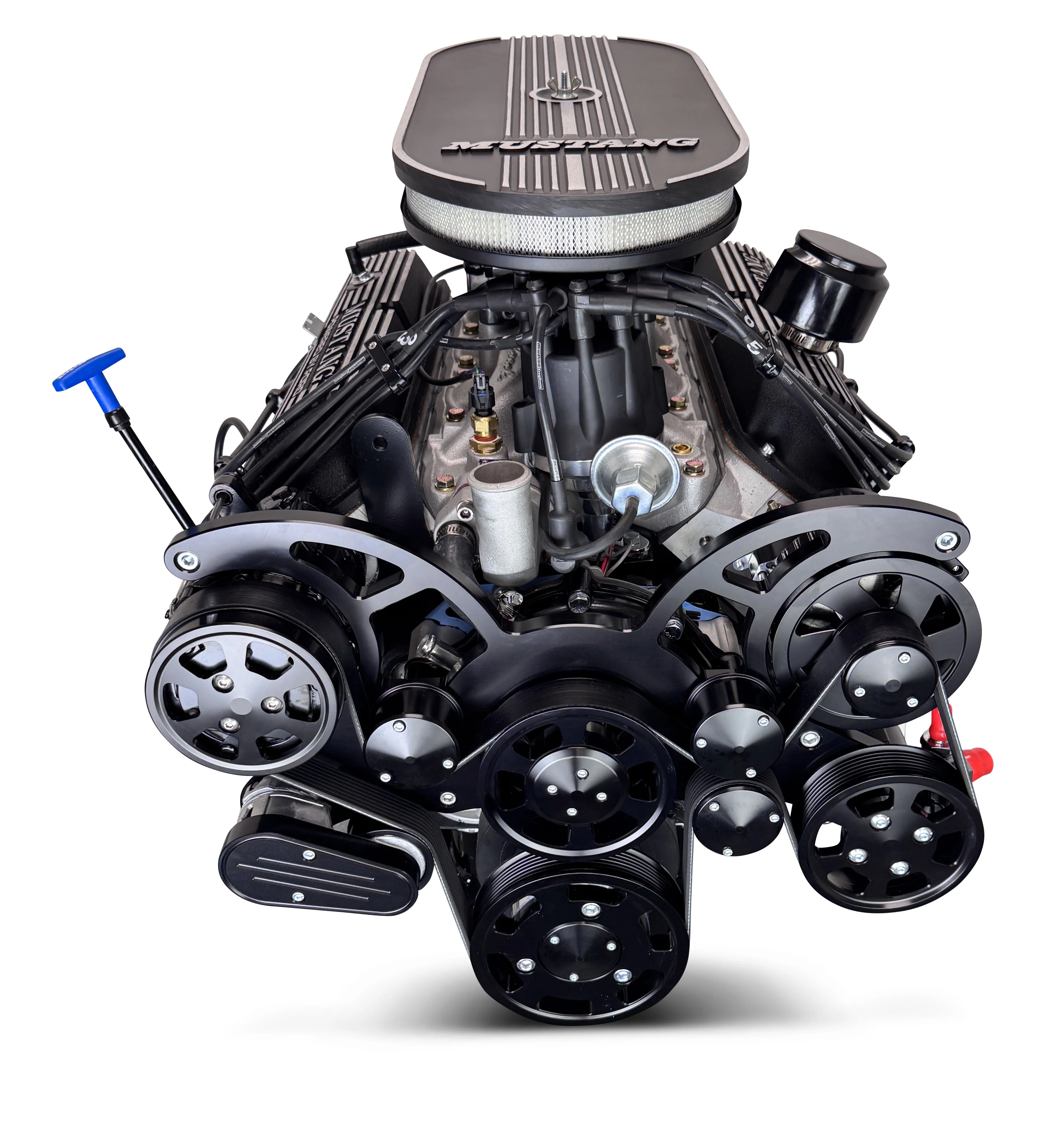

  • Package Ships assembled as pictured.
  • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
  • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM

$20,899.00
Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series - Black Pulley Kit - Fuel Injected—
$20,899.00

Product Information

Shipping & Returns

Description

Description:

  • Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Cast Iron Crank
  • Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Priority Main Oiling
  • 4.000" Bore
  • 4-Bolt Main
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design

Rotating Assembly:

  • New BluePrint Cast Iron Crankshaft
  • 3.400" Stroke
  • Forged I-Beam 5.400" Connecting Rods
  • Forged Pistons
  • 28oz Externally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - HP9009
  • 60cc Chamber
  • 2.02" Intake / 1.60" Exhaust Valves
  • 190cc Intake / 65cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .543 Intake / .554 Exhaust Lift
  • 218 Intake / 226 Exhaust Duration
  • @.050-112 Degree Lobe Separation

Ignition Timing:

  • 34 Degrees Total at 3500 RPM

Also Includes:

  • Dual Plane, Satin Aluminum Intake Manifold
  • Holley Sniper 2 EFI System - BPP550-510-3XX
  • EFI Fuel Pump Kit - BPP5267
  • Pro Billet Distributor
  • Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*
  • 7 Quart Oil Pan
  • Thermostat and Thermostat Housing
  • Black Front Accessory Drive - BPP302FDACPS4BK
    • Driver Side Standard Rotation Water Pump
    • Type II Power Steering Pump
    • Remote Power Steering Pump Reservoir
    • 140amp 1-wire Alternator
    • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete TKX Transmission Package:

  • Mcleod Super Street Pro single disk clutch
  • Hydraulic throw out bearing
  • Aluminum Bell housing
  • Billet flywheel
  • Engine guard
  • Starter
    • First Gear Ratio: 2.87:1
    • Second Gear Ratio: 1.89:1
    • Third Gear Ratio: 1.28:1
    • Fourth Gear Ratio: 1.00:1
    • Fifth Gear Ratio: 0.81:1

Notes:

  • Package Ships assembled as pictured.
  • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
  • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
