Overview:

This high-output 427 c.i. Small Block Ford–compatible BluePrint Engine delivers 541 horsepower and 519 lb-ft of torque, making it an excellent choice for aggressive street builds, restomods, and performance enthusiasts seeking a reliable powerplant with serious horsepower and torque. Built around a 9.5-inch deck height Windsor-based BluePrint high-strength cast iron block featuring a 4.125-inch bore, 4-bolt main caps, one-piece rear main seal, and a forged rotating assembly. It is topped with CNC-ported BluePrint Engines aluminum cylinder heads and a matched hydraulic roller camshaft, providing exceptional airflow and a broad, responsive powerband. With a 10.0:1 compression ratio, this engine is optimized for 91+ octane pump gas, delivering impressive performance without sacrificing drivability. Backed by BluePrint Engines’ industry-leading 30-month / 50,000-mile warranty.

The 427ci Small Block Ford achieved modern legend status through its use in the industry’s top Cobra and Cobra replica builders where it became known for producing massive power in lightweight chassis. These engines helped redefine the capabilities of the Windsor-based platform, particularly in high-end Cobra replicas and continuation-style builds. Weighing significantly less than a traditional big block, the 427 stroker enhances front-end balance, handling, and braking, making it a proven choice for performance-focused applications.

Description:

• Horsepower & Torque: 541 Horsepower / 519ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• NEW BluePrint Engines' High Strength Cast Iron Block

• 4-Bolt Main
• 4.125" Bore
• 1-Piece Rear Main Seal
• 9.500 Deck Height

Rotating Assembly:

• New Forged Crankshaft
• 4.000" Stroke
• Forged 6.250" Connecting Rods
• Forged Pistons
• Internally Balanced

Cylinder Heads:

• Aluminum Cylinder Heads
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 205cc Intake / 70cc Exhaust Runners

Cam Specs:

• Cam Type: Roller
• .608 Intake / .608 Exhaust Lift
• 248 Intake / 258 Exhaust Duration
• @.050-114 Degree Lobe Separation

Also Includes:

• Ribbed 427 Cobra Aluminum Valve Covers

• Holley 870 cfm Carburetor
• Harmonic Balancer

• Spark Plugs & Wires
• Plug Wire Separators
• Timing Cover
• Powder Coated 9qt. Oil Pan
• Thermostat and Thermostat Housing
• Oil Filter

• Electric Fuel Pump Black

• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

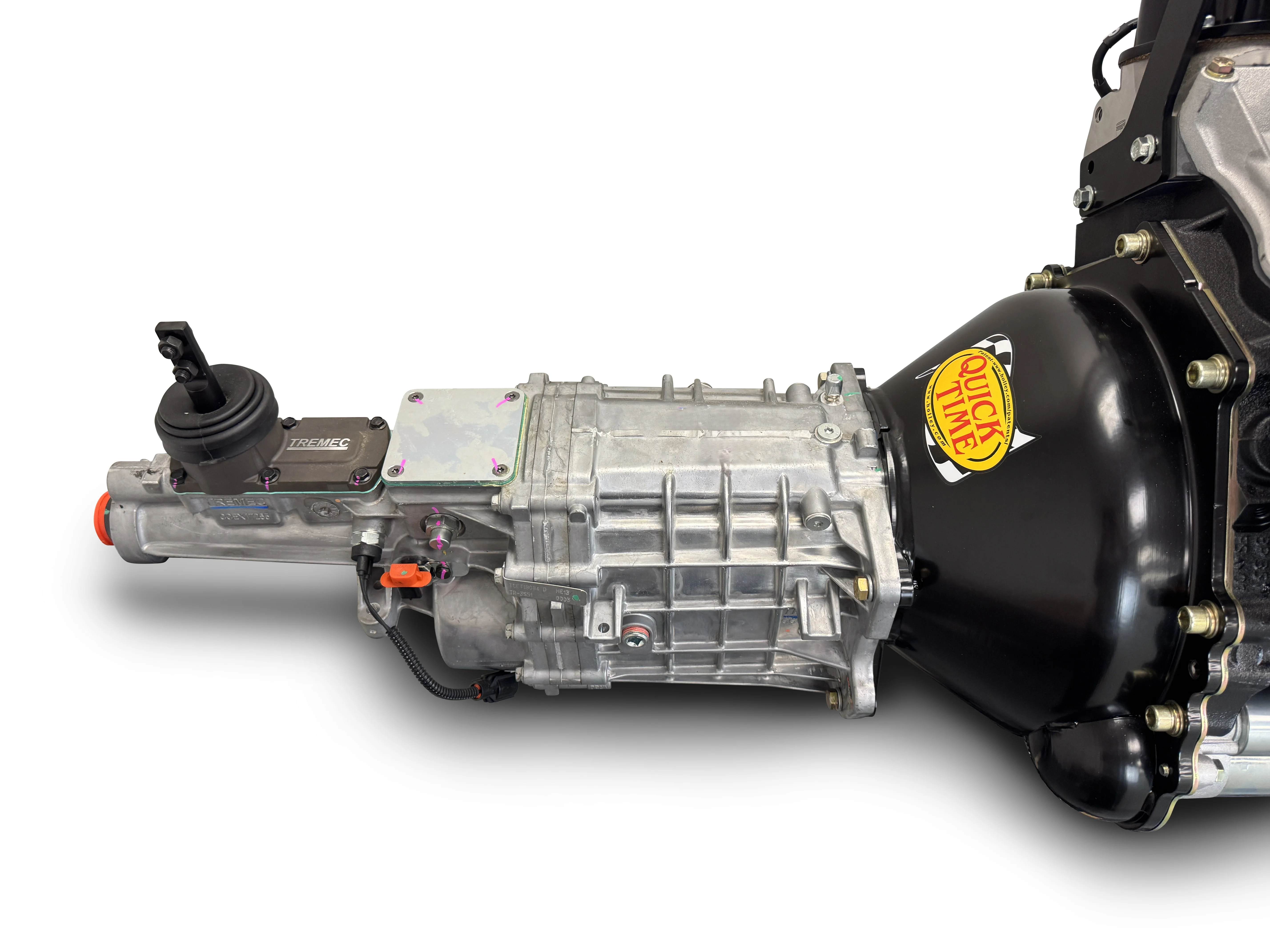

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro single disk clutch
• Hydraulic throw out bearing
• Steel bell housing
• Billet flywheel
• Engine guard
• Starter
• First Gear Ratio: 2.87:1
• Second Gear Ratio: 1.89:1
• Third Gear Ratio: 1.28:1
• Fourth Gear Ratio: 1.00:1
• Fifth Gear Ratio: 0.81:1

Notes:

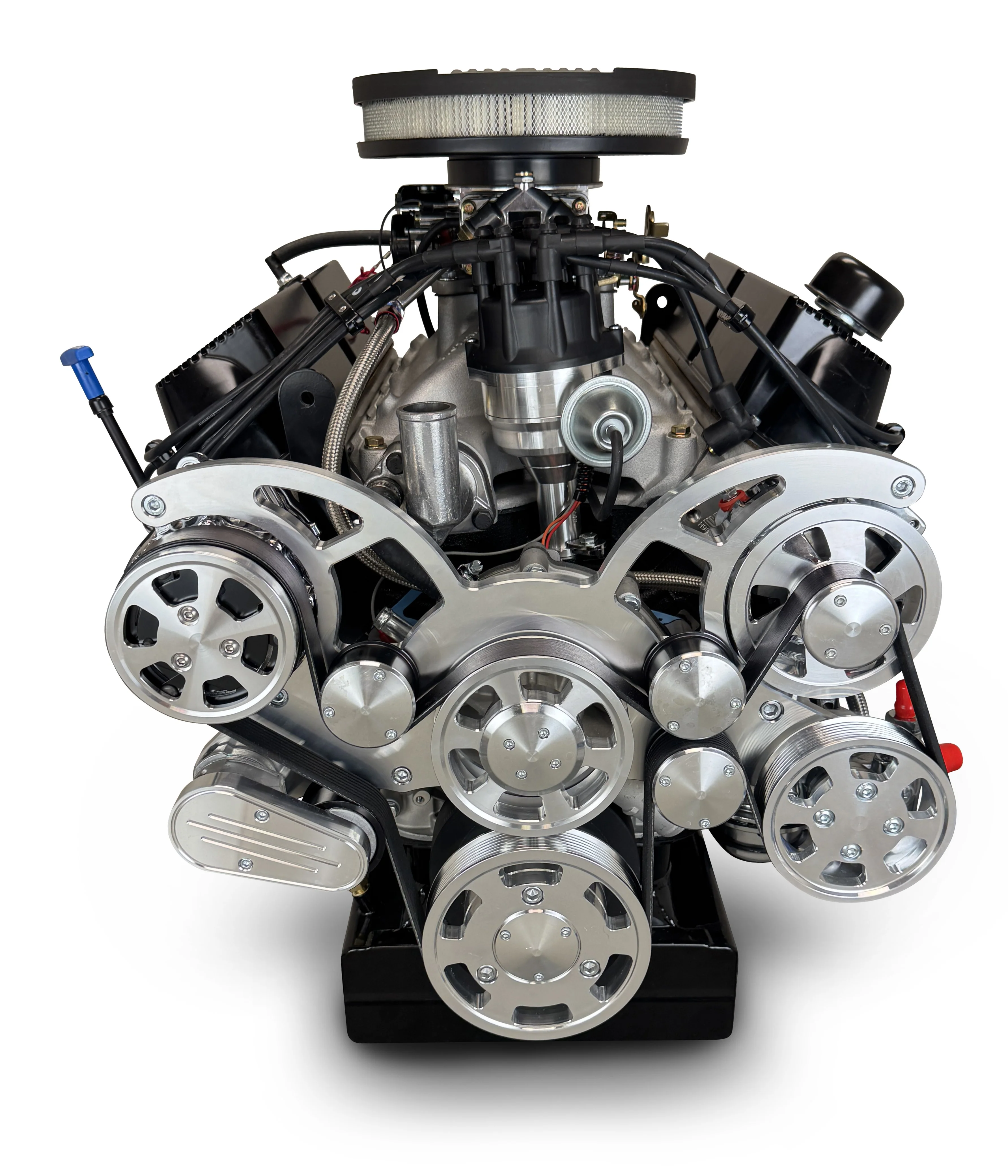

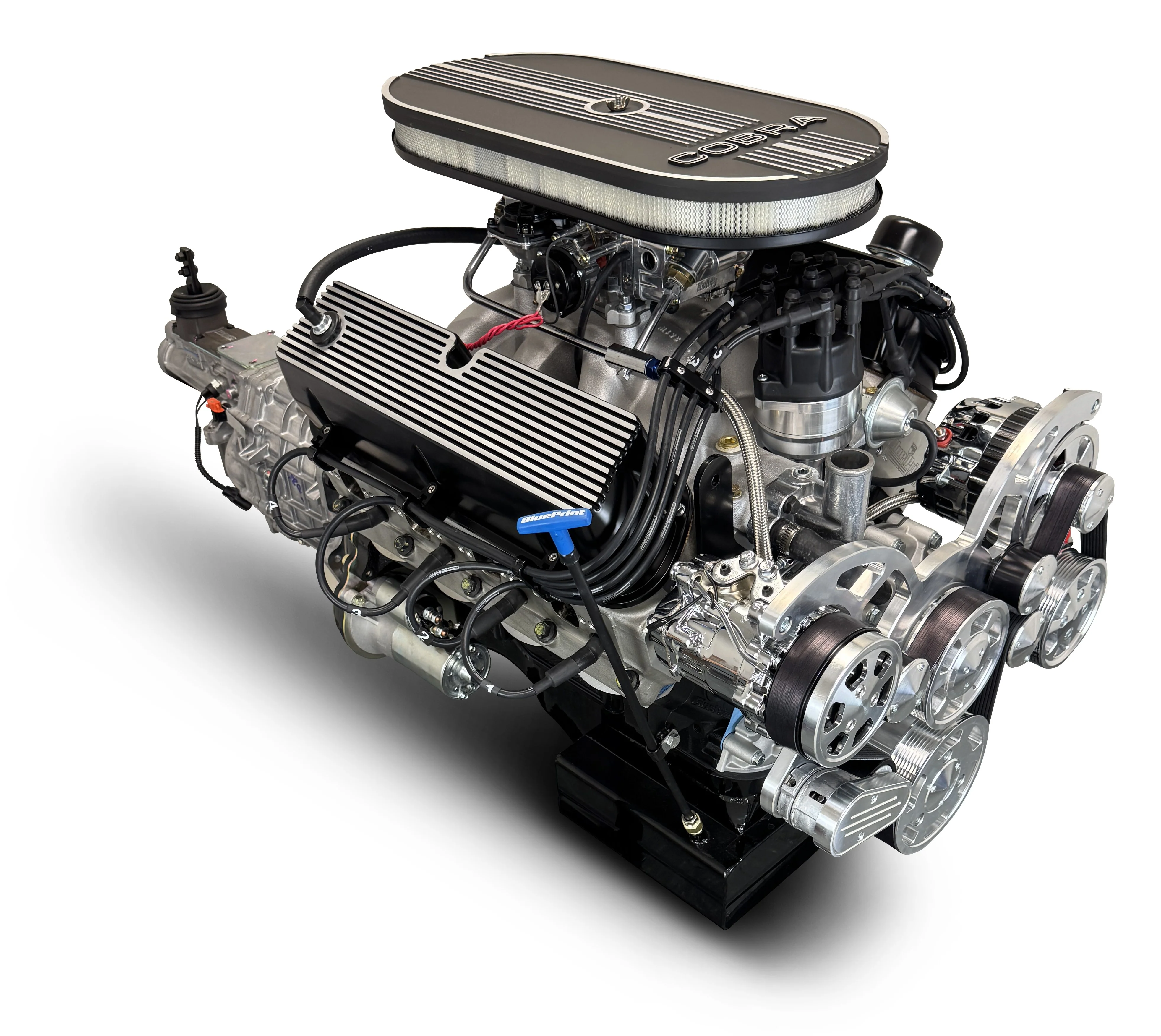

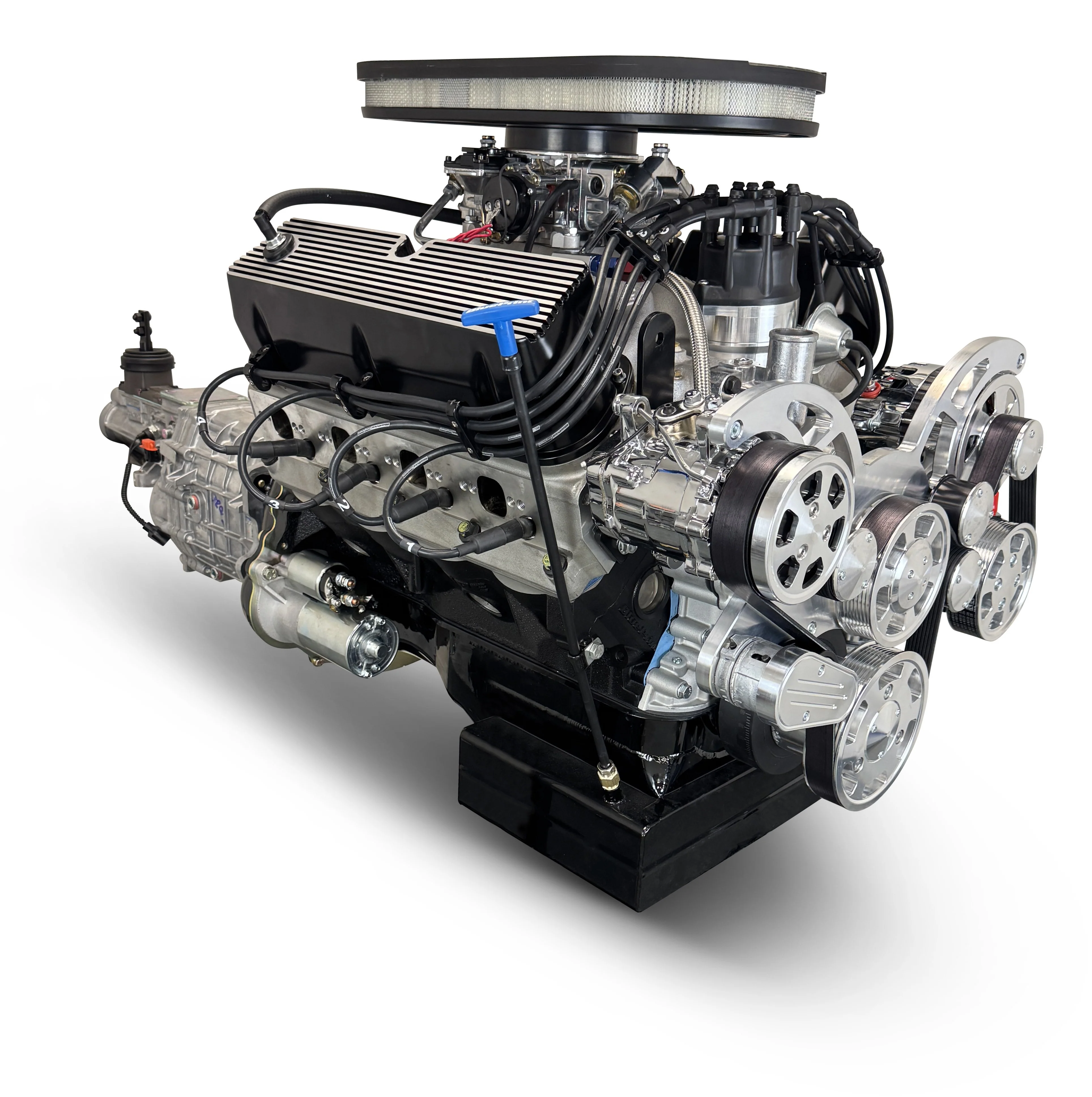

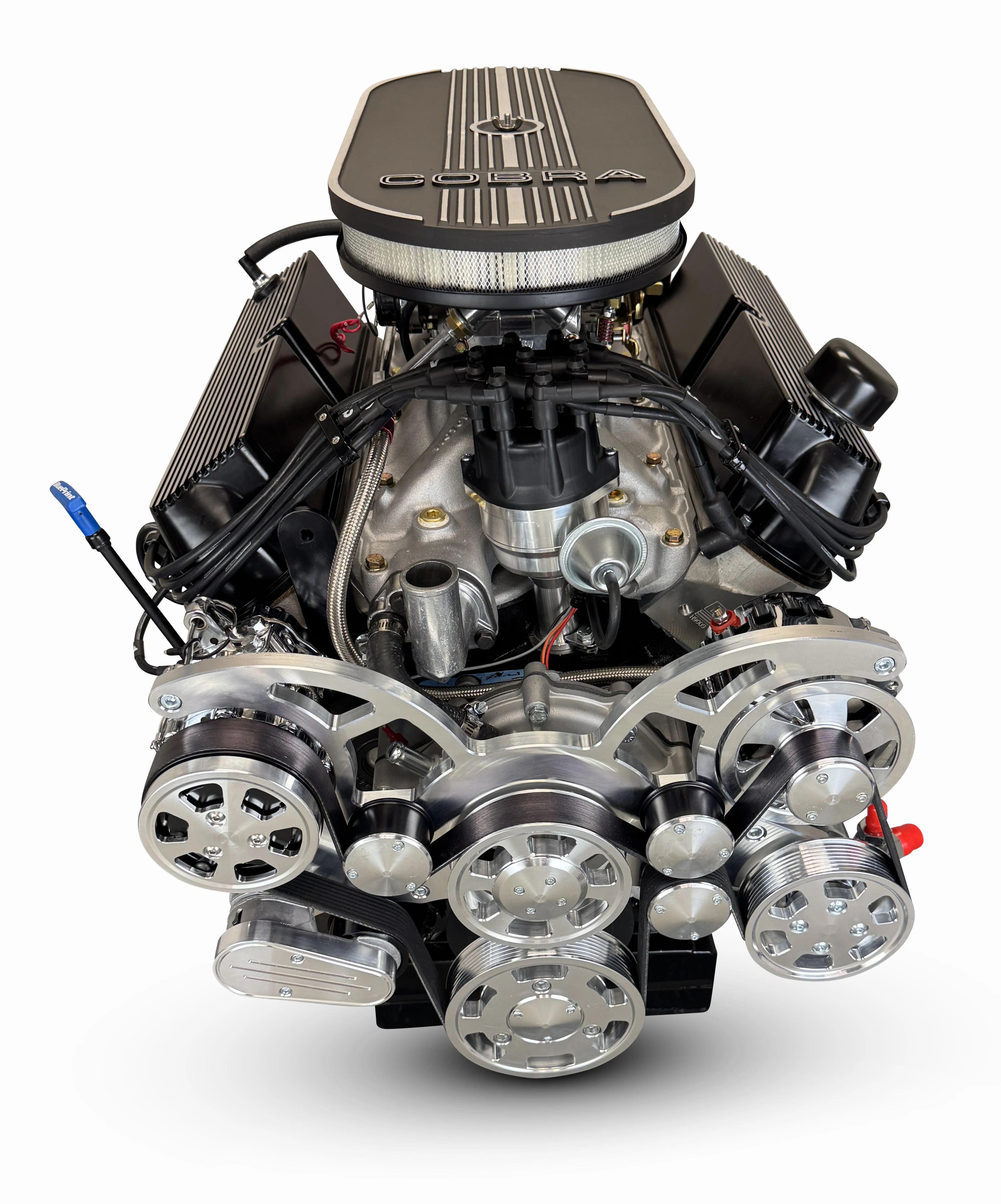

•  Package Ships assembled as pictured.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
